1. camshaft adjustment gauge – for 1.9 LD / SD / SDI / TD / TDI (from 97), not for pump-nozzle, also suitable for Ford and Volvo VW OE comparison number 3418
2. Locking – for camshaft and crankshaft at 2.5 L TDI V6 and 3.3 L V8 TDI (Audi A8) VW OE comparison number 3458
3. lock mandrel for crankshafts – for V6 / V8 Diesel VW OE comparison number 3242
4. Stop mandrel – to fix the tensioner for timing belt change
5. lock mandrel – to lock the injection pump sprocket at 1.9 LD / SD / SDI / TD / TDI and the camshaft at TDI pump-jet engines VW OE comparison number 3359
6. Locking – to lock the oval crankshaft toothed belt wheel with 2.0 L TDI pump nozzle VW OE comparison number T 10100
7. Timing Belt Spanner Wrench – flexible head with locking screw, thus well suited for cramped spaces (functions of the following keys idler V 159 , 3387 and T 10020 )
8. Unscrew the screw securing the fan clutch
9. camshaft adjustment gauge – fixed the camshaft and pump shaft when replacing a timing belt and installation of injection pump VW OE comparison number 2065 A
10. Locking – to lock the crankshaft belt pulley at 1.2 / 1.4 L / 1.9 L TDI pump nozzle VW OE comparison number 10050
11. lock mandrel – to fix the tensioner when replacing a timing belt VW OE comparison number T 40011
12 studs – relieves the belt tension by pressure build-up on the plunger on the drive belt tensioner OE VW comparison number T 10092
13. Support rods – to advance the front wall to the engine VW OE comparison number 3369
14. lock mandrel – for TDI pump nozzle VW OE comparison number 3359
15 Retaining plate – to lock the tensioner timing belt on TDI pump nozzle VW OE comparison number T 10008
16. Locking device – Camshaft 1.4 / 1.6 L 16V petrol engines VW OE comparison number T 10016
17 lock mandrel – to lock the injection pump sprocket VW OE comparison number 2064
18. camshaft adjustment gauge – to lock the camshaft on 1.9 L TDI and SDI, disassembly of the valve cover is not required VW OE comparison number T 10098 A
19. Locking – for camshaft and crankshaft when changing the timing chain on the 1.2 L 12V 3-cylinder engine VW OE comparison number T 10123
20. 12-kt. Diesel -Einspritzdüsen, SW22 VW OE comparison number 3078
21. fixing bolt for locking the crankshaft when checking the timing VW OE comparison number T 10120
22 holder for chain tensioner for installation and removal of the chain tensioner VW OE comparison number 3366
23 Absteckdorn 4, 7 and 8 mm
24 locking the tensioner roller for removing and installing the timing belt on vehicles with modified engine mounts VW OE comparison number T 10264
25. actuation of the clamping role in removal and replacement of the timing belt on vehicles with modified engine mounts VW OE comparison number T 10265
26. For injection and Diesel engines for locking the clamping element in disassembly of the V-ribbed belt. VW OE comparison number T 10060 / T 10060 A
27. Locking – for camshaft and crankshaft when changing the timing chain on the 1.2 L 12V 3-cylinder engine VW OE comparison number T 10120
28 Absteckdorn
29 incl. System case
Technical info:

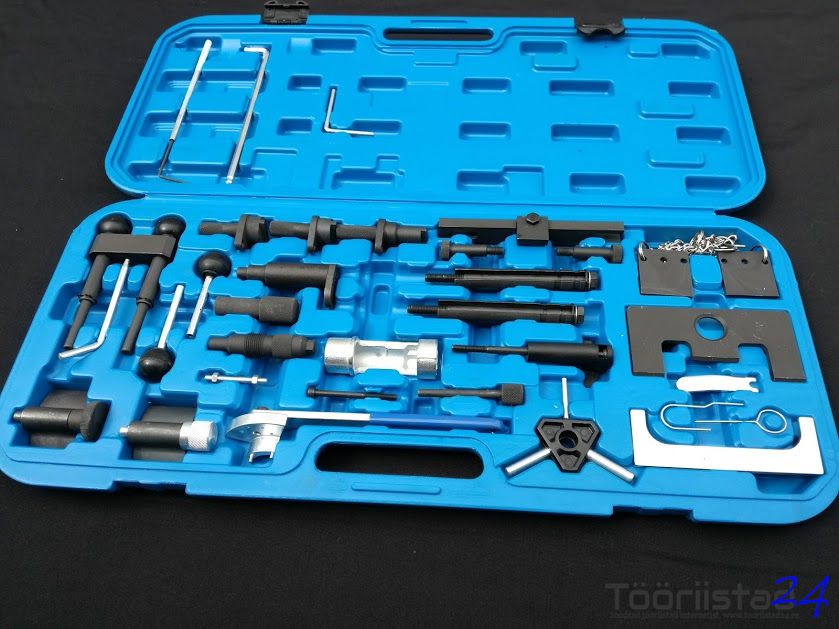

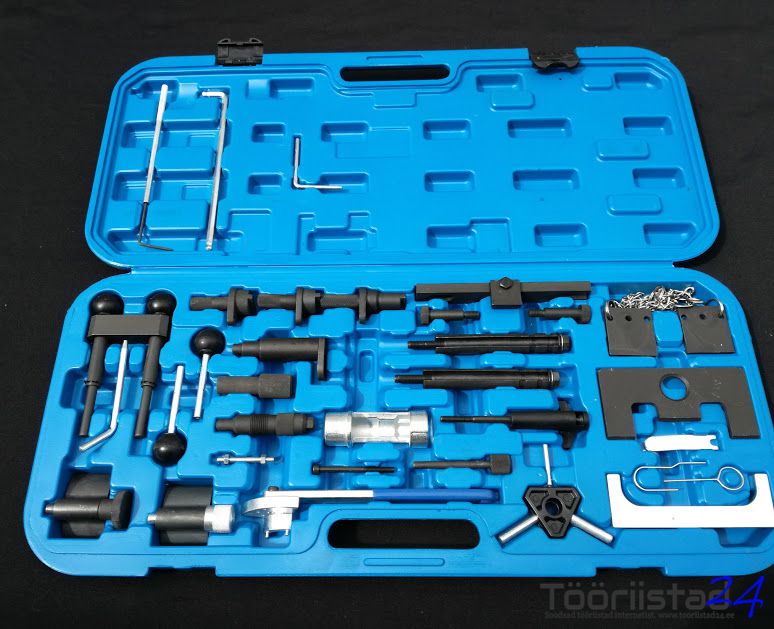

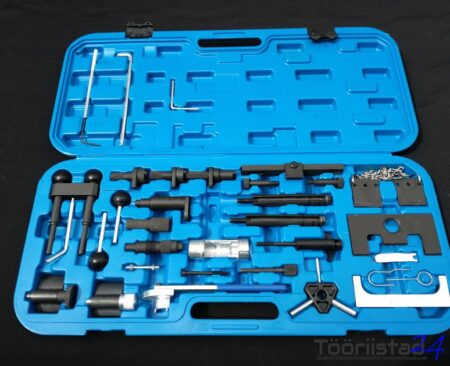

Changing the timing belt, crank and Nockenwellenarretierwerkzeug for the professional repair of VAG engines
Suitable for motors with the following engine codes: AFB / AKE / AKN / AYN / CONSTRUCTION / BCZ / BDG / BFC
The tool can be used eg for the following car brands:
Diesel engines:1.2 , 1.4 , 1.9 , 2.0 TDI PD, 1.7 , 1.9 D / TD / SDI / TDI, 2.5 TDI V6
Audi: 80, A2, A3, A4, A6, Cabriolet ( 95-00 )
Seat: Alhambra, Arosa, Altea, Cordoba, Ibiza, Inca, Leon, Toledo
Skoda: Fabia, Felicia, Octavia ( 93-05 )VW: Bora, Caddy, Golf, Lupo, New Beetle, Passat, Polo, Sharan, Transporter, Touran
Petrol engines:1.2 6V – 1.2 12V – 1.4 – 1.6 – 1.8 – 1.8 T – 2.0 16V
Audi: 80 – A2 – A3 – S3 – A4 – A6 – TT
Seat: Alhambra, Arosa, Cordoba, Ibiza, Inca, Leon, Toledo
Skoda: Fabia, Octavia (from 96) VW: Bora, Caddy, Fox, Golf, Lupo, New Beetle, Passat, Polo, Sharan, Touran
Lock mandrel and angle screwdriver (SW6) for timing belt tensioner with 4-cylinder Diesel engines, eg VW Golf, Caddy, Sharan, Touran from 2004
Locking for camshaft timing chain and timing belt tensioner, for gasoline engines 1.8 , 1.8 t (double camshaft), 2.4 , 2.7 , 2.8 (V6)eg:
Audi A3, A4, A6, TTSeat Alhambra, Cordoba, Ibiza, Leon, ToledoSkoda Octavia
Autode mudelid:BMW 118,120,316,318,320,520i, X3, Z4.
BMW 1. seeria: E87 118i / 120i (04-10)BMW 3-seeria: E46 316i / 316ti Kompaktne, 318ti Kompaktne (01-05), 318i (01-07), E90 / E91 318i 318ti 320i (05-08)
BMW 5-seeria: E60 520i (04-08),BMW X3: E83 2.0i (05-09)Z4: 2,0 E85 – (2004-2009).
