Fiat, Ford, GM, PSA ja Suzuki 1.3 diiselmootorite jaotusmehhanismi fikseerimise komplekt

Tööriistade komplekt Fiat 1.3 JTD MultiJet kettajamiga diiselmootoritele, mida kasutatakse ka Alfa Romeo, Ford, GM (Chevrolet, Chrysler), Lancia, PSA (Citroën, Peugeot), Suzuki ja Vauxhall/ Opel sõidukites. Spetsiaalselt loodud nukkvõlli ja väntvõlli fikseerimiseks õigele positsioonile mootori ajastusahela reguleerimise või asendamise ajal.

Sobib mudelitele:

• Alfa Romeo: MiTo (2008–2018)
• Chevrolet: Aveo (2011–2015)
• Chrysler: Ypsilon (2011–2015)
• Citroën: Nemo (2010–2016)
• Fiat:
  • 500 (2007–2019), 500C (2007–2019), 500L (2012–2020), 500X (2015–)
  • Doblo (2004–2010), Doblo (2010–2019)
  • Fiorino (2008–2019)
  • Grande Punto (2005–2012)
  • Idea (2004–2012)
  • Linea (2007–2016)
  • Panda (2003–2013), Panda Classic (2003–2013), Panda (2012–2019)
  • Punto (2003–2012), Punto Classic (2003–2012), Punto (2012–2019)
  • Qubo (2008–)
  • Tipo (2015–)
• Ford: Ka (2008–2015)
• Lancia: Musa (2004–2013), Ypsilon (2003–2015)
• Peugeot: Bipper (2010–2016)
• Subaru: Justy G3X (2004–2009)
• Suzuki: Ignis (2003–2009), Splash (2008–2011), Swift (2004–2010), Swift (2010–2015), Wagon R+ (2003–2008)
• Vauxhall/ Opel:
  • Agila (2003–2010)
  • Astra-H (2004–2009), Astra-J (2009–2015)
  • Combo-C (2003–2012), Combo-D (2012–2018)
  • Corsa-C (2003–2007), Corsa-D (2006–2014)
  • Meriva-A (2003–2010), Meriva-B (2010–2015)
  • Tigra-B (2004–2010)
  • Zafira-B (2006–2010)

Mootorikoodid:

• 1.3 – Z13DT
• 1.3 CDTi – A13DTC, A13DTE, A13DTR, D13A, Y13DT, Z13DT, Z13DTE, Z13DTH, Z13DTI, Z13DTJ, Z13DTR
• 1.3 DDiS – D13A, D13AA, Z13DT, Z13DTJ
• 1.3 HDi – FHZ (F13DTE5)
• 1.3 JTDM – 330A1.000, 199A3.000, 199B1.000, 199B4.000, 199B8.000, 955B2.000
• 1.3 MultiJet – 199B1.000
• 1.3 MultiJet/ JTD – 55266963, 55283775, 169A1.000, 169A5.000, 188A8.000, 188A9.000, 199A2.000, 199A3.000, 199A9.000, 199B1.000, 199B2.000, 199B4.000, 199B8.000, 223A9.000, 225A2.000, 263A2.000, 263A6.000, 312A8.000, 312B1.000, 312B2.000, 312B5.000, 330A1.000, 843A2.000, 955B2.000
• 1.3 TDCi – 169A1.000 (FD4) / BAAA/B
• 1.3 VCDi – LDV/A13DTC, LSF/A13DTR

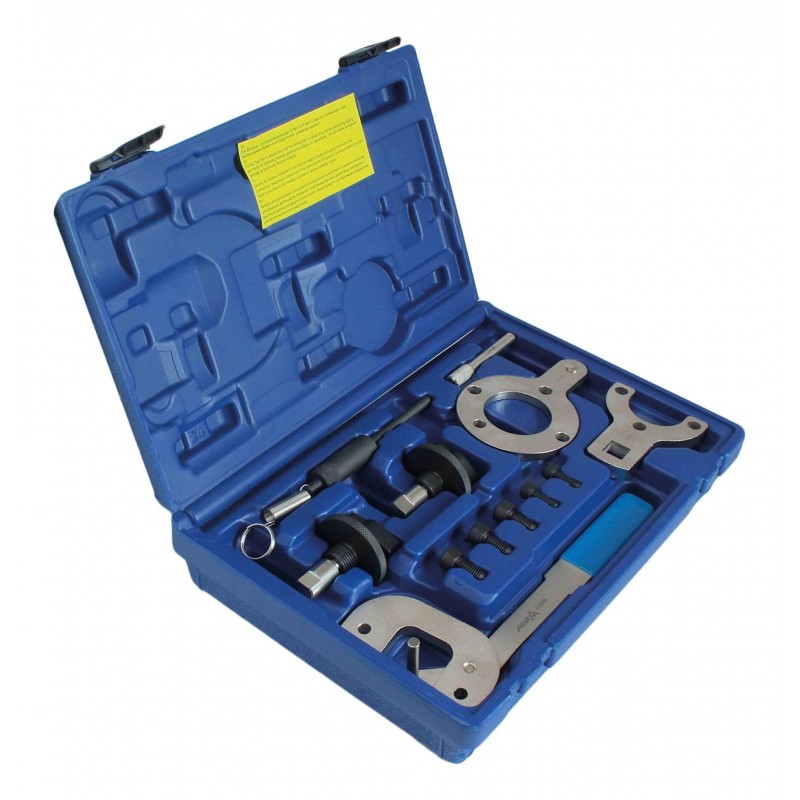

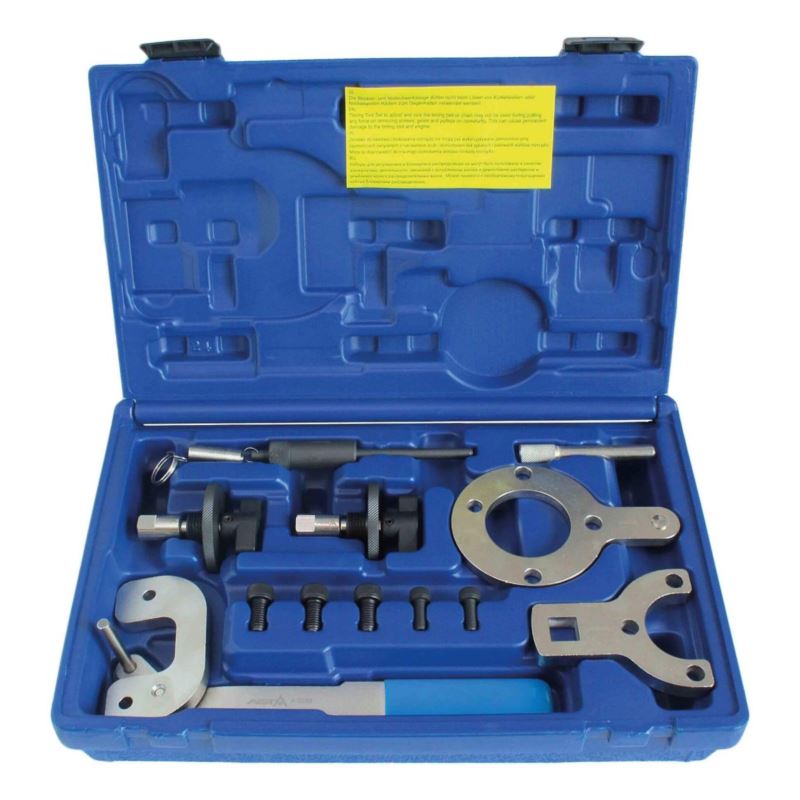

Set includes:

• Crankshaft pulley flange holding tool and bolts (3pcs)
• Timing chain tensioning tool
• Camshaft setting tools (2pcs)
• Flywheel alignment pin c/w spring
• Crankshaft timing tool
• Camshaft/ crankshaft timing pin

OEM koodid:

• 1.871000.200, 1.870.900.400, 1.860.985.000, EN-46785, 1.870.900.300, EN-52137

Other OEM:

• KM 661 C, 303-1468, 0104-A, 09917-68610, 1.871.000.900, 303-1472, EN-46781
• 09912-38300
• 104-C, 303-1468, 0104-C
• 0132AJ1, 0187B, 0189B, 0194B, 09919-58120, 21 263, 303-735, 303-1277, 49 JE02 021, 607 589 011 500, 9997122, MOT1430
